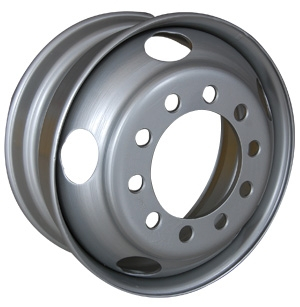

15º DC tubeless steel rim

Quantity:
sharethis sharing button
  • 17.5x6.00

  • 200

Tubeless wheels are made of high-quality steel, welded by flash butt welding, and three rolling processes. The whole wheel is completely processed by molds and manufactured by assembly line operations.
It has the characteristics of high strength, light weight, good dynamic balance and stable performance.
Tubeless Steel Wheels (Tubeless Steel Wheels)
Wheel size Bolt Holes Distribution circle P.C.D (mm) Center hole diameter B.C.D (mm) Offset (mm) Disc Thickness (mm) Equipped with tyre
No. of Holes Hole Dia. (mm) Hole Type
17.5×6.00
17.5×6.00 6 32 SR22 222.25 164 118 10/12 215/75R17.5
17.5×6.00 5 29 SR22 203.2 146 118 10/12 215/75R17.5
17.5×6.00 5 32 SR22 203.2 146 115 10/12 8R17.5
17.5×6.00 5 32 SR22 208 150 115 10/12 8R17.5
17.5×6.00 6 32 SR22 222.25 164 135 10/12 8R17.5
17.5×6.75
17.5×6.75 6 32 SR22 222.25 164 121 10/12 9R17.5
17.5×6.75 10 26 SR18 225 176 140 10/12 9.5R17.5
17.5×6.75 6 32 SR22 222.25 163 140 10/12 9R17.5
22.5×6.75
22.5×6.75 8 32.5 SR22 285 221 162 12/14 225/70R22.5
22.5×6.75 10 26
335 281 165 12/14 9R22.5
22.5×6.75 8 32 SR22 275 214 142 12/14 9R22.5
22.5×6.75 8 24 1×45° 275 221 140 12/14 9R22.5
22.5×6.75 8 32 SR22 285 221 142 12/14 9R22.5
22.5×7.50
22.5×7.50 8 32 SR22 275 214 152 14/16 10R22.5
22.5×7.50 10 32 SR22 285.75 222 165 14/16 225/70R22.5
22.5×7.50 8 32 SR22 285 221 148 14/16 10R22.5
22.5×7.50 10 26 SR22 335 272 138 14/16 10R22.5
22.5×7.50 8 32 SR22 275 214 138.5 14/16 10R22.5
22.5×7.50 10 26 1×45° 335 281 165 14/16 10R22.5
22.5×8.25
22.5×8.25 8 32 SR22 275 214 165 14/16 11R22.5
22.5×8.25 10 26 1×45° 335 281 151 14/16 11R22.5
22.5×8.25 10 26 SR18 335 281 151 14/16 11R22.5
22.5×8.25 10 32 SR22 285.75 222 175 14/16 275/70R22.5
22.5×8.25 10 26 SR22 335 272 151 14/16 11R22.5
22.5×8.25 8 32 SR22 285 221 151 14/16 11R22.5
22.5×8.25 10 32.5 SR22 285.75 222 169 14/16 275/80R22.5
22.5×8.25 8 32 SR22 275 214 152 14/16 11R22.5
22.5×8.25 10 26 SR18 335 275 154 14/16 11R22.5
22.5×8.25 8 32.5 SR22 285 221 169 14/16 11R22.5
22.5×8.25 10 26 1×45° 285.75 220 109 14/16 275/80R22.5
22.5×9.00
22.5×9.00 10 26
335 281 175 14/16 12R22.5
22.5×9.00 10 27 SR18 335 281 175 14/16 295/80R22.5
22.5×9.00 10 26
285.75 220 175 14/16 315/80R22.5
22.5×9.00 10 32 SR22 285.75 222 175 14/16
22.5×9.00 10 26 1×45° 335 281 158 14/16 12R22.5
22.5×9.00 10 26 SR18 335 281 161 14/16 12R22.5
22.5×9.00 10 32 SR22 285.75 221.5 161 14/16 12R22.5
22.5×9.00 8 32.5 SR22 285 221 172 14/16 12R22.5
22.5×11.75
22.5×11.75 10 27 SR18 335 281 0 14/16 385/65R22.5
22.5×11.75 10 27 SR18 335 281 201 14/16 385/65R22.5
