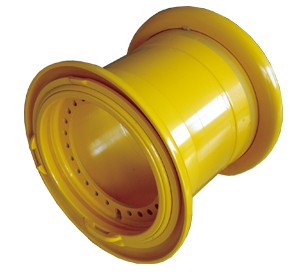

5-piece tubeless

Quantity:
sharethis sharing button
  • 35x15.00/3.0

  • 50

One of the characteristics: It is made of welded steel fittings. The internal grains of the material are small and compact, which ensures the strength and rigidity of the wheel. Feature two: The plug-in lap interface form is adopted to ensure the coaxial and welding quality between the parts. Feature three: The use of Lincoln welding equipment ensures sufficient penetration and strong penetration of the welding parts; Lincoln welding wire and flux ensure the strength and good appearance of the weld. Feature four: The overall shot blasting treatment after welding is adopted, which not only removes the oxide scale on the surface but also eliminates the internal welding stress, and ensures the quality of the wheel. Feature 5: The use of electrophoresis primer and surface spray paint, so that the wheels have both a beautiful appearance and long-lasting corrosion resistance, making the wheels last longer.
2
Wheel size Recommend Tire size Specification(mm) main parameter size Weight (KGS) Spare Parts NO. Spare Parts Code
A B C D E F G H Rim rim body Side ring Movable seat Lock ring
25×10.00/1.5 14.00-25 254 635 38.1 574.6 173.3 82.7 546 27 125 JJ2510001505EM SR1525EM BS25EMS01 LR25EM
25×11.25/2.0 16.00-25 285.8 635 50.8 574.6 185.7 82.7 546 27 136 JJ2511252005EM SR2025EM BS25EMS01 LR25EM
25×13.00/2.5 18.00-25 330.2 635 63.5 574.6 211.4 82.7 546 27 166 JJ2513002505EM SR2525EM BS25EMS01 LR25EM
25×14.00/1.5 17.5-25 356 635 38.1 574.6 224.1 82.7 546 27 153 JJ2514001505EM SR2155EM BS25EMS01 LR25EM
25×15.00/3.0 21.00-25 381 635 76.2 574.6 236.5 82.7 546 27 188 JJ2515003005EM SR3025EM BS25EMS01 LR25EM
25×17.00/2.0 20.5-25 431.8 635 50.8 574.6 262 82.7 546 27 167 JJ2517002005EM SR2025EM BS25EMS01 LR25EM
25×19.50/2.5 23.5-25 495.3 635 63.5 574.6 293 82.7 546 27 195 JJ2519502505EM SR2025EM BS25EMS01 LR25EM
33×13.00/2.5 18.00-33 330.2 838.2 63.5 574.6 211.4 82.7 749.2 27 223 JJ3313002505EM SR2533EM BS33EMS01 LR33EM
